SkyVault Series

Big tubes for big spaces.

Call to action button, click me I will play the video.

Supersized Solutions for High, Open Ceilings.

SkyVault. Natural Light Goes Big.

The core of the SkyVault Series, our largest tubular daylighting devices, is the M74 DS with tubes 29" wide and extending up to 100' long to fill the largest spaces with natural light.

Made to Be Modular

The beauty of the SkyVault is that it's not just one size fits all. With varying combinations of domes and collectors to capture light with tube extensions to transfer it, and an optional Amplifier to deliver it into the building, the SkyVault Series is a flexible, high-output solution for any large-volume space.

Learn More

Massive Sunlight Capture

It all starts with standard domes that are available in both single- and dual-glazed configurations with optional security guards. But then the light capture gets really big with the oversized SkyVault Collector that redirects low-angle light downward while filtering out the heat of infrared rays.

Learn More

Deep Delivery

The M74 DS uses unique bottom assembly components to deliver maximum daylight in high-ceiling applications, from the prismatic diffuser to the optional Amplifier, which focuses daylight all the way down to the task area.

Learn More

All the Accessories for Big Impact

The SkyVault Series offers accessories that not only control the levels of light let into a building space, but also minimize the level of heat. And with other accessories for both fit and finish, the system looks as good as it works.

Learn More

SkyVault Technology

See How It Works

SkyVault Daylight Dimmer

From basketball games, theatrical performances and films, to trade shows, corporate meetings and more, the SkyVault Daylight Dimmer represents a true breakthrough in natural lighting. Bright daylight when you want it, near total black out when you need it.

Commercial SkyVault Tab Box

Product Selection Guide

Visit Technical Resources for specifications, CAD drawings, approvals and other useful information.



SkyVault M74 DS
SkyVault M74 DS

SkyVault M74 DS

The SkyVault Series is a line of modular, high output tubular daylighting devices that deliver massive amounts of daylight to large volume spaces with high, open ceilings.

The Solatube M74 DS is the core of the SkyVault Series, and is available with the following pre-assembled configurations:

• Single-glazed dome assembly
• Single-glazed dome assembly with security guard
• Dual-glazed dome assembly
• Dual-glazed dome assembly with security guard


Tube size ≈ 29 in. (74 cm)
Potential tube length ≈ 100 ft. (30 m)

Applications
• Airports
• Convention centers
• Hospitality
• Warehouse & Industrial
• Retail
• Military

Collector Large

NEW SkyVault Collector

The SkyVault Collector makes it possible to capture significantly more daylight than traditional skylights without heating the building interior. Featuring proprietary Raybender HD, LightTracker and Cool Tube Technologies, the vertical collector:

• Maximizes daylight delivery by capturing and redirecting low-angle light down ward into the system

• Minimizes solar heat gain by preventing heat-carrying infrared rays from entering the system

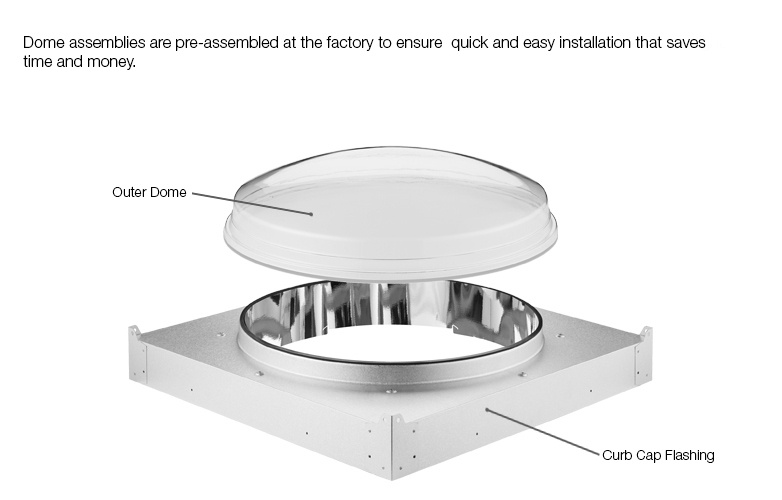

Single-Glazed Dome Assembly
Single-Glazed Dome Assembly

Single-Glazed Dome Assembly

The Single-Glazed Dome Assembly ships pre-assembled with the following components:

• Outer Dome
• Pre-insulated Curb Cap
• Tube Collar
• Dome Edge Protection Band

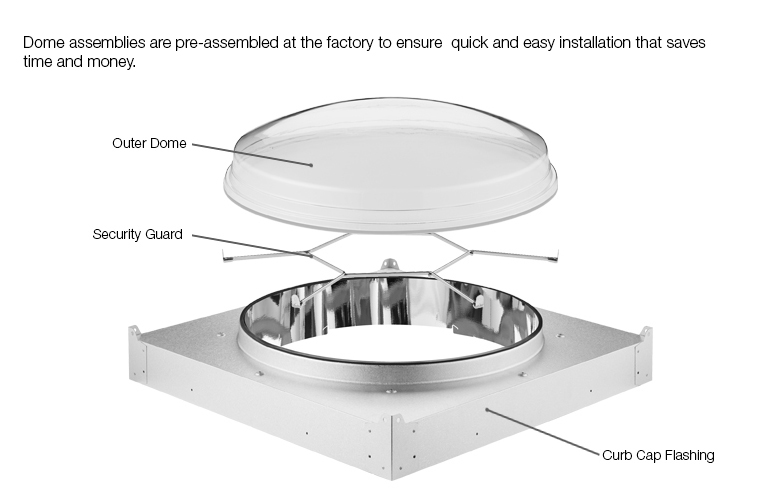

Single-Glazed Dome Assembly With Security Guard
Single-Glazed Dome Assembly With Security Guard

Single-Glazed Dome Assembly with Security Guard

Dome assembly ships pre-assembled with the following components:

• Outer Dome
• Pre-insulated Curb Cap
• Tube Collar
• Dome Edge Protection Band
• Security Guard

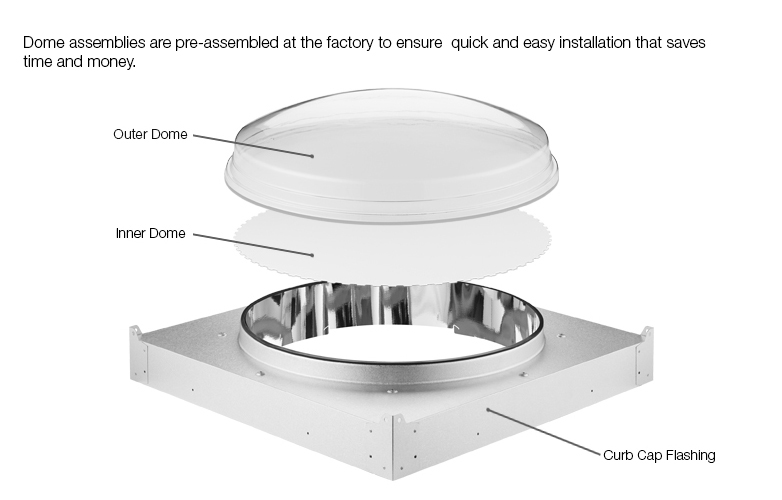

Dual-Glazed Dome Assembly
Dual-Glazed Dome Assembly

Dual-Glazed Dome Assembly

The Dual-Glazed Dome Assembly ships pre-assembled with the following components:

• Outer Dome
• Inner Dome
• Pre-insulated Curb Cap
• Tube Collar
• Dome Edge Protection Band

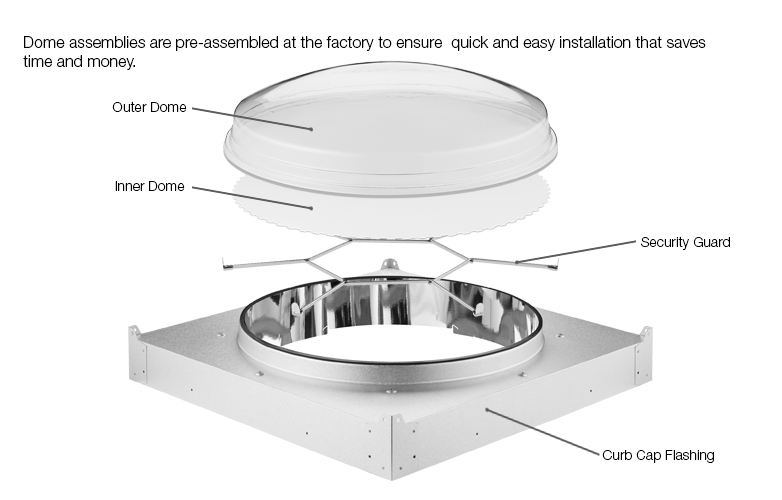

Dual-Glazed Dome Assembly With Security Guard
Dual-Glazed Dome Assembly With Security Guard

Dual-Glazed Dome Assembly with Security Guard

The Dual-Glazed Dome Assembly ships pre-assembled with the following components:

• Outer Dome
• Inner Dome
• Pre-insulated Curb Cap
• Tube Collar
• Dome Edge Protection Band

SkyVault Series Amplifier
Amplifier

SkyVault Series Amplifier

The Solatube M74 DS Amplifier significantly improves the delivery of daylight in high bay and high ceiling applications. Featuring 36 highly reflective facets made of proprietary Spectralight® Infinity material, the cone-shaped amplifier:

• Reorients daylight to the visual task plane in occupied areas

• Converts daylight at inefficient angles into useable light for increased optical efficiency of diffuser technologies



SkyVault Series Diffuser Assembly
Diffuser

SkyVault Series Diffuser Assembly

SkyVault Series Diffuser Assemblies provide precise control over daylight collected by our optical domes and Spectralight Infinity Tubing. Each is factory-assembled to make field installation quick and easy.

The  Diffuser Assembly comes pre-assembled and easily attaches to extension tubes using the patented Tab-Lock Connection System and Tube Belts. The circular shape is designed for open ceiling applications and the Prismatic lens delivers maximum daylight to the work floor.

Thermal Insulation Panel
Thermal Insulation Panel

Thermal Insulation Panel

Provides unmatched thermal performance. Two climate control discs paired with polycarbonate ring prevent conductive and convective heat transfer. Spectralight® Infinity material inside ring maximizes light transfer.

Extension Tubes
Extension Tubes

Extension Tubes

Extension tubes feature a revolutionary Tab-Lock Connection System with Tube Belts that prevent gaps and eliminate the need for screws and tape. Tubes come in 24 in. and 48 in. lengths.

Optional Security Guard
Optional Security Guard

Optional Security Guard

The optional Security Guard comes pre-installed in specific dome assemblies and consists of a stainless steel rods welded into a hexagonal grid riveted into the curb cap turret, creating a visual and physical deterrent at the dome level.

Daylight Dimmer
Daylight Dimmer

SkyVault Series Daylight Dimmer

At times, it may be necessary to reduce the amount of daylight in your big space – during a sporting event or presentation, for instance. Made of the same material as our Spectralight® Infinity tubing the optional SkyVault Daylight Dimmer uses a patented butterfly baffle designed to ensure even light distribution in any position. The SkyVault Dimmer can be fully integrated into virtually any 0-10V digital lighting control system, working both in conjunction with and separately from electrical lighting.

Trim Ring

Trim Ring

Trim Ring

The Trim Ring provides a finished appearance to the installation, covering the cut edge of the roof deck penetration in an open ceiling application.
