SolaMaster Series

Maximum daylight. Maximum versatility.

Open or closed. New or retrofit. SolaMaster has it covered.

SolaMaster. A Flexible Solution.

With three different domes, varying extension tubing configurations and both open and closed ceiling options. SolaMaster products provide the versatility for numerous applications and sunlight conditions.

Multiple Domes. More Daylight.

From the 300 DS dome for smaller spaces and retrofits, to the 330 DS with an integrated reflector, and the 750 DS with unique lens technology, you get options to maximize daylight capture no matter your application.

Learn More

Mounting Solutions for Any Roof

Whatever your roof, whatever your application, Solatube has the flashings to meet all your needs with design and construction that eliminates any chance for leaks.

Learn More

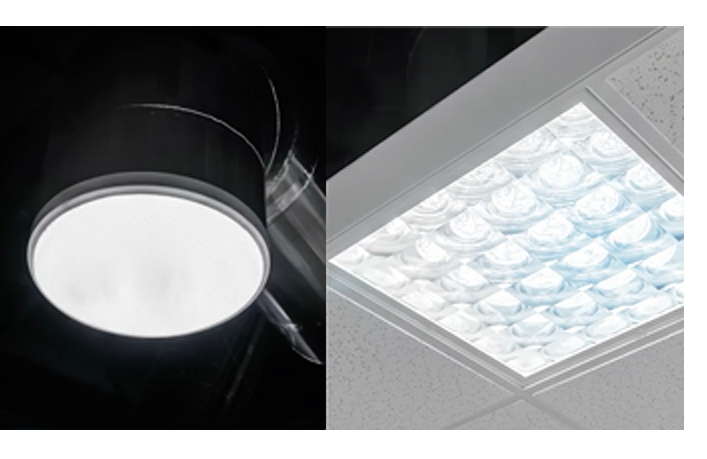

Diffuser Options to Match Your Design

Open ceiling or closed. Round or square. Prismatic or OptiView. You get diffuser options to enhance the look of your interior however you choose.

Learn More

Tubing for Total Transfer

SolaMaster's extension tubing, with the world's most reflective surface, provides the length and angles (even 90º bends) to carry light through virtually any space. And it even has optional dimpled sections to smooth the light delivery for optimal visual comfort.

Learn More

Accessories for Total Daylighting Control

The SolaMaster Series offers accessories that not only control the levels of light let into a building space, but also minimize the level of heat.

Learn More

SolaMaster Technology

See How It Works

Commercial SolaMaster Tab Box

Product Selection Guide

Visit Technical Resources for specifications, CAD drawings, approvals and other useful information.

300 DS Closed Ceiling

The SolaMaster 300 DS is a great solution for your smaller or lower ceiling spaces that have a hard or suspended ceiling system, and offers a great solution that works with 16-inch on center framing. Includes Spectralight Infinity, 0-30 Degree Angle Adapter, Softlight Technology Extension Tube and a 2' x 2' Metal Transition Box.

• Tube size ≈ 14 in. (350 mm)
• Potential tube length ≈ 30 ft. (9 m)

Applications
• Small offices / Corridors
• Storage rooms
• Modular classrooms
• Restrooms





330 DS Open Ceiling

The SolaMaster 330 DS is designed to maximize light output at any time of day. It effectively captures low-angle rays in the morning and late afternoon, and collects high-angle rays at midday for powerful performance. It is ideal for lighting expansive spaces with open ceilings where variances in light levels don’t create an issue for occupants.

• Tube size ≈ 21 in. (530 mm)
• Potential tube length ≈ 50 ft. (15 m)

Applications
• Lobbies / Atriums
• Recreation areas
• Gymnasiums

330 DS Closed Ceiling

The SolaMaster 330 DS is designed to maximize light output at any time of day. It effectively captures low-angle rays in the morning and late afternoon, and collects high-angle rays at midday for powerful performance. It is ideal for lighting expansive spaces with dropped ceilings where variances in light levels don’t create an issue for occupants.

• Tube size ≈ 21 in. (530 mm)
• Potential tube length ≈ 50 ft. (15 m)

Applications
• Offices / Corridors
• Restaurants
• Retail spaces



750 DS Open Ceiling

The SolaMaster 750 DS is designed to deliver consistent light output throughout the day. It effectively captures low-angle rays in the morning and late afternoon, but rejects high-angle rays at midday to prevent glare, overlighting and overheating.  Perfect for large spaces with open ceilings where a consistent level of light is required during typical work hours.

• Tube size ≈ 21 in. (530 mm)
• Potential tube length ≈ 50 ft. (15 m)

Applications
• Warehouses
• Manufacturing areas
• Retail spaces

750 DS Closed Ceiling

The SolaMaster 750 DS is designed to deliver consistent light output throughout the day. It effectively captures low-angle rays in the morning and late afternoon, but rejects high-angle rays at midday to prevent glare, overlighting and overheating.  Perfect for large spaces with dropped ceilings where a consistent level of light is required during typical work hours.

• Tube size ≈ 21 in. (530 mm)
• Potential tube length ≈ 50 ft. (15 m)

Applications
• Classrooms
• Conference rooms
• Retail spaces

Flashings

Regardless of the particular roof type or deck material you use, Solatube products have a flashing designed to meet your needs. The seamless, one-piece steel construction eliminates the possibility of leaks by ensuring there are no weak points that may separate and allow water to enter.

Self Mounted Flashing

• Available in 4 in. (100 mm), 6 in. (150 mm), 8 in. (200 mm) and 11 in. (280 mm) high flashing options; used on pitched or flat roof systems

• The 4 in. (100 mm) high flashing is recommended for most residential applications because of its low profile

• The 8 in. (200 mm) and 11 in. (280 mm) high flashings are recommended for use on flat commercial roof applications to meet commercial curb height requirements







Flashings

Regardless of the particular roof type or deck material you use, Solatube products have a flashing designed to meet your needs. The seamless, one-piece steel construction eliminates the possibility of leaks by ensuring there are no weak points that may separate and allow water to enter.

Metal Roof Flashing

• 2-piece streamlined design eliminates the need for expensive curbs and bulky crickets

• Innovative DryLock Technique provides a triple-seal that virtually locks the flashing to the roof deck

• Easily adapted to fit nearly any Universal Standing Seam Rib (SSR) roof profile







Flashings

Regardless of the particular roof type or deck material you use, Solatube products have a flashing designed to meet your needs. The seamless, one-piece steel construction eliminates the possibility of leaks by ensuring there are no weak points that may separate and allow water to enter.

Curb Mounted Cap

• Designed for use on all roof curbs for all roof types

• For use with any pre-built wood or manufactured metal curb

• Designed with a 4 in. counterflash to accomodate insulation needs for 300 DS

• Cap covers roofing material lapped over top of curb, leaving no exposed edges








OptiView® Diffuser

The innovative design of our square OptiView Diffuser features individual Fresnel lenses that offer a unique view of the sky above while providing unrivaled light diffusion and vertical surface illumination. Available for use on closed ceiling models.

Prismatic Diffuser

Perfect for replicating the look and style of traditional troffers, the rectangular Prismatic Diffuser blends into virtually any design for a bright diffusion of natural light. Available for use on closed ceiling models.

OptiView® Diffuser with White Trim

The innovative design of our circular OptiView Diffuser features individual Fresnel lenses that offer a unique view of the sky above while providing unrivaled light diffusion and vertical surface illumination. The diffuser snaps on to the bottom tube for easy installation. Available for use on open ceiling models.

Prismatic Diffuser with White Trim

Perfect for replicating the look and style of traditional troffers, the circular Prismatic Diffuser blends into virtually any design for a bright diffusion of natural light. The diffuser snaps on to the bottom tube for easy installation. Available for use on open ceiling models.

Thermal Insulation Panel

Provides unmatched thermal performance. Two climate control discs paired with polycarbonate ring prevent conductive and convective heat transfer. Spectralight® Infinity material inside ring maximizes light transfer.

• 330 DS
• 750 DS



Daylight Dimmer

At times, it may be necessary to reduce the amount of bright daylight in a building—during a presentation, for instance. The optional Daylight Dimmer uses a patented butterfly baffle and a convenient wall-mounted switch to allow for simple and easy adjustments to room daylight illumination levels.

Double-Pole Double-Throw (DPDT) Switch

Daylight Dimmer Switch Kit (sold separately) includes DPDT switch, wall plate and 30 ft./9 m of cable. Multiple Daylight Dimmers can be controlled by one switch.

• 300 DS
• 330 DS
• 750 DS



Daylight Dimmer Switch Kit

The Daylight Dimmer Switch Kit includes a Double-Pole Double-Throw (DPDT) switch, wall plate and 15 ft. (4.5 m) of cable. One switch can control multiple Daylight Dimmers simultaneously.

Daylight Dimmer

When paired with the Daylight Dimmer Switch Kit, the optional Daylight Dimmer (sold separately) allows for simple and easy adjustments to room daylight levels.

• 300 DS
• 330 DS
• 750 DS







Spectralight® Infinity Extension Tubes

Extension tubes can be added in increments of 24 in. (610 mm) or 48 in. (1220 mm) for long runs without sacrificing performance. Spectralight Infinity has the highest reflectivity in the world for the brightest, purest light. Create tube runs of up to 50 ft. (15 m).

• 300 DS
• 330 DS
• 750 DS









Spectralight® Infinity 0-90 Degree Extension Tube

Provides superior performance that flexible tubes can’t match. An innovative design with three built-in 30 degree angle adapters that give you the flexibility to install around obstacles. Available in 23 in. (580 mm) length.

• 300 DS
​• 330 DS
• 750 DS







Turret Extensions

Use to raise the height of the Solatube dome on a roof to avoid snow, water, or shading from roof obstructions. Order additional Spectralight® Infinity tubing to accommodate turret height. Available in 12 in. (300 mm), 24 in. (610 mm), 36 in. (900 mm) and 48 in. (1220 mm) sizes.

• 300 DS
• 330 DS
• 750 DS




Transition Box

The SolaMaster® Series features a patented transition box that seamlessly converts the round tubing to a square diffuser. The transition box easily fits into standard commercial ceiling grids.

• 330 DS
• 750 DS

Flashing Insulator

This insulating material helps to reduce condensation in cold climates when the flashing is exposed to a humid interior space. The insulator is affixed to the flashing base and the top tube slips through the opening, which provides a seal between the interior and metal flashing.

• 300 DS
​• 330 DS
• 750 DS



Trim Ring

For use with the Solatube 330 DS and 750 DS Open Ceiling Configurations, the trim ring provides a finished appearance to the installation.

• 330 DS
• 750 DS



Secondary Diffuser

To eliminate unwanted glare or to reduce light output, an optional secondary diffuser can be inserted into the Solatube® Daylighting System dome for natural lighting preference.

• 330 DS
• 750 DS



Security Bar

This stainless steel bar inserts into the flashing turret across the diameter of the opening. The bar is fastened using rivets and prohibits entry through the dome.

• 330 DS
• 750 DS



Dome Security Kit

The kit consists of three rivets with protective nylon spacers, which replace dome screws. The dome security kit reduces the possibility of the dome being removed.

• 330 DS
• 750 DS



Wire Suspension Kit

Use the Wire Suspension Kit when additional bracing to the structure is required.

• 330 DS
• 750 DS



Dome Edge Protection Band

Made of galvanized steel, this optional component isesigned for use on Class A, B, or C roofs to maintain fire rating.

• 330 DS
• 750 DS



Curb Cap Insulation Kit

This R6 rigid, 1 in. thermal insulation is sealed and taped in the curb cap flashing base, which provides a thermal seal between the metal flashing and building envelope.

• 330 DS
• 750 DS
